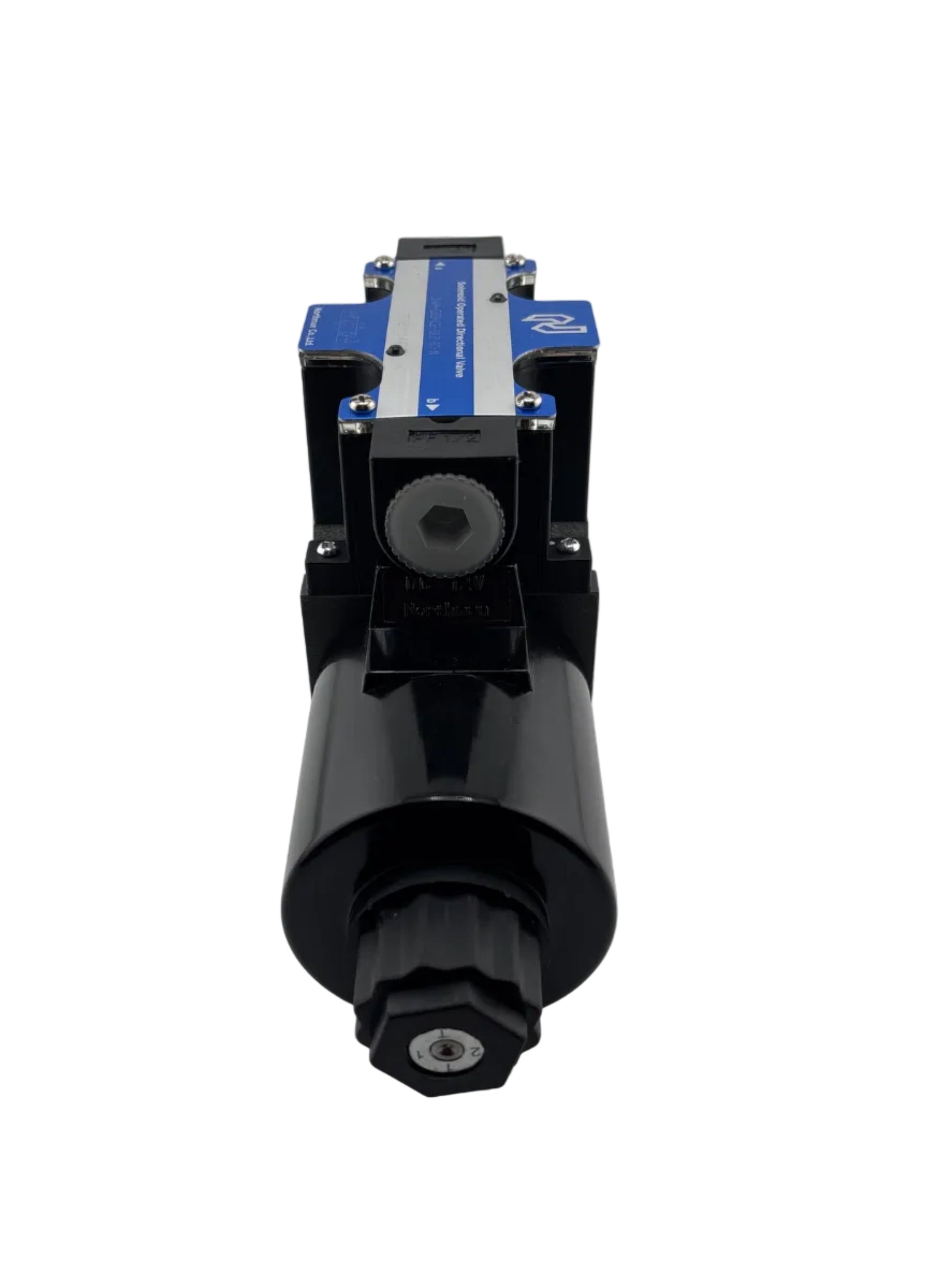

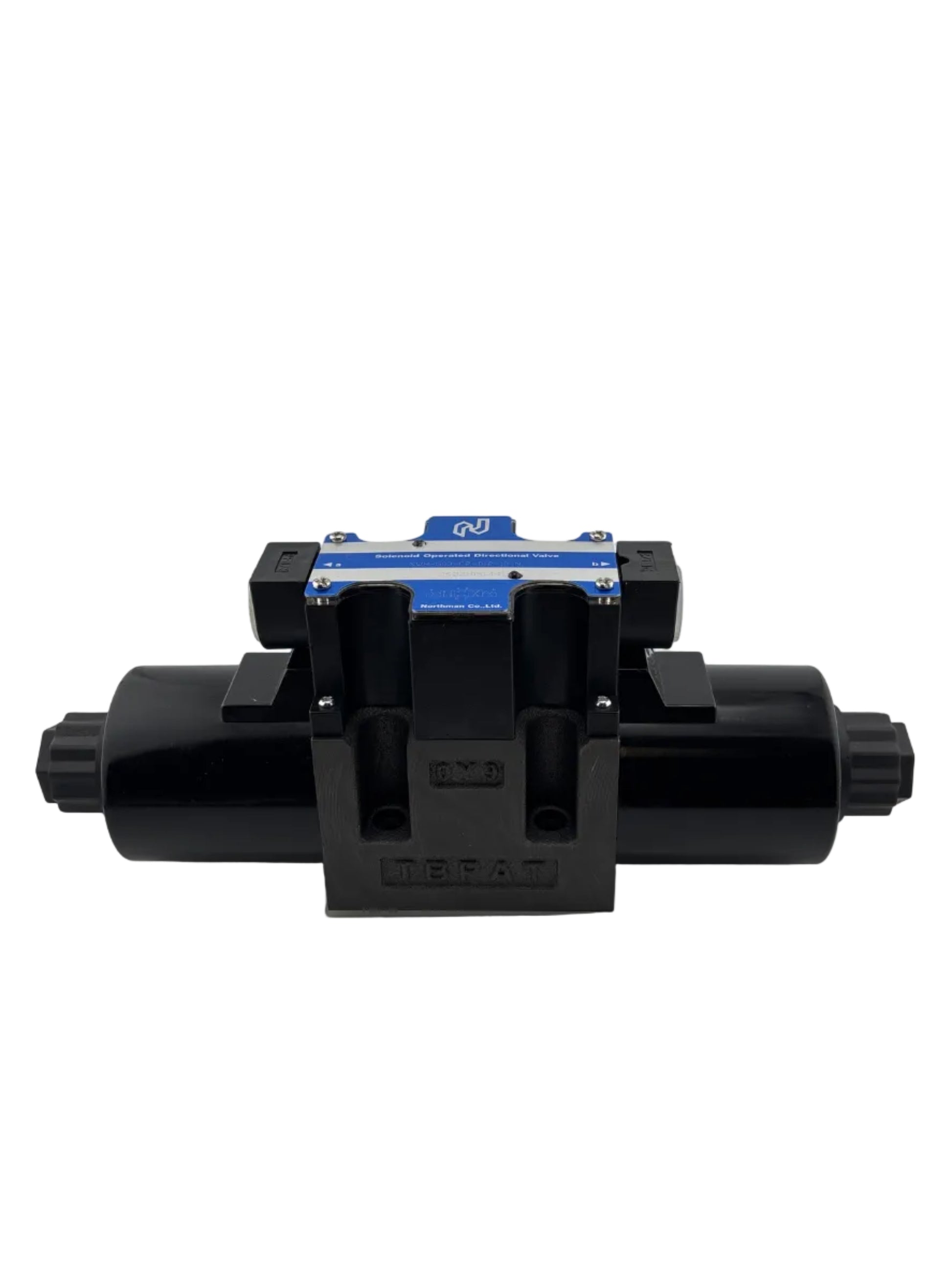

Northman SWH-G03 Series D05 Hydraulic Solenoid Valves

Northman SWH-G03 Series D05 Hydraulic Solenoid Valves

$475.48
$475.48
Sale Sold out
Shipping calculated at checkout.

SWH-G03 Series Specifications



• Indicating lights and bolt kits are standard.
• Coil screws are especially designed to prevent shocks.
• Electrical connections are joint box type or Hirschman DIN type plug-in connector.
• Joint box is waterproof and dust-resistance.
• Space for electrical connections is large enough for connection layout.
• Electrical connection points are aligned with the axial direction to be compatible with modular system.
• The valve mounting screws are on the outside of the body for ease of installation and repair.
• High pressure up to 310 BAR (4500 PSI), allows for large flow rates up to 120 LPM (32 GPM).
• Ideal design of flow passages to minimize pressure drop.
• High back pressure up to 160 BAR (2350 PSI)
• Manufactured with specifications that allows for parts and accessories interchangeability.

View full details

Model Specifications

Valve type: Solenoid-operated directional control valve, direct operated Function: 4-way, 3-position directional valve Center condition: C2 = closed center / all ports blocked Solenoids: Dual solenoid Mounting style: G = subplate mounted Nominal size / interface: 03 = 10 mm, NFPA D05, ISO 4401-05 / CETOP 5 / NG10 Coil voltage D12 = 12 VDC Voltage range: 10.8–13.2 VDC, ±10% Coil current: 2.58 A inrush / 2.58 A holding for D12 Coil wattage: 32 W Wiring style: 10 = joint box / junction box with indicating lights Seal suffix: N = Buna / Buna-N seals Max operating pressure: 310 bar / 4500 psi Rated flow capacity: 120 LPM / 32 GPM max, varies by spool type Max tank line back pressure: 160 bar / 2350 psi
