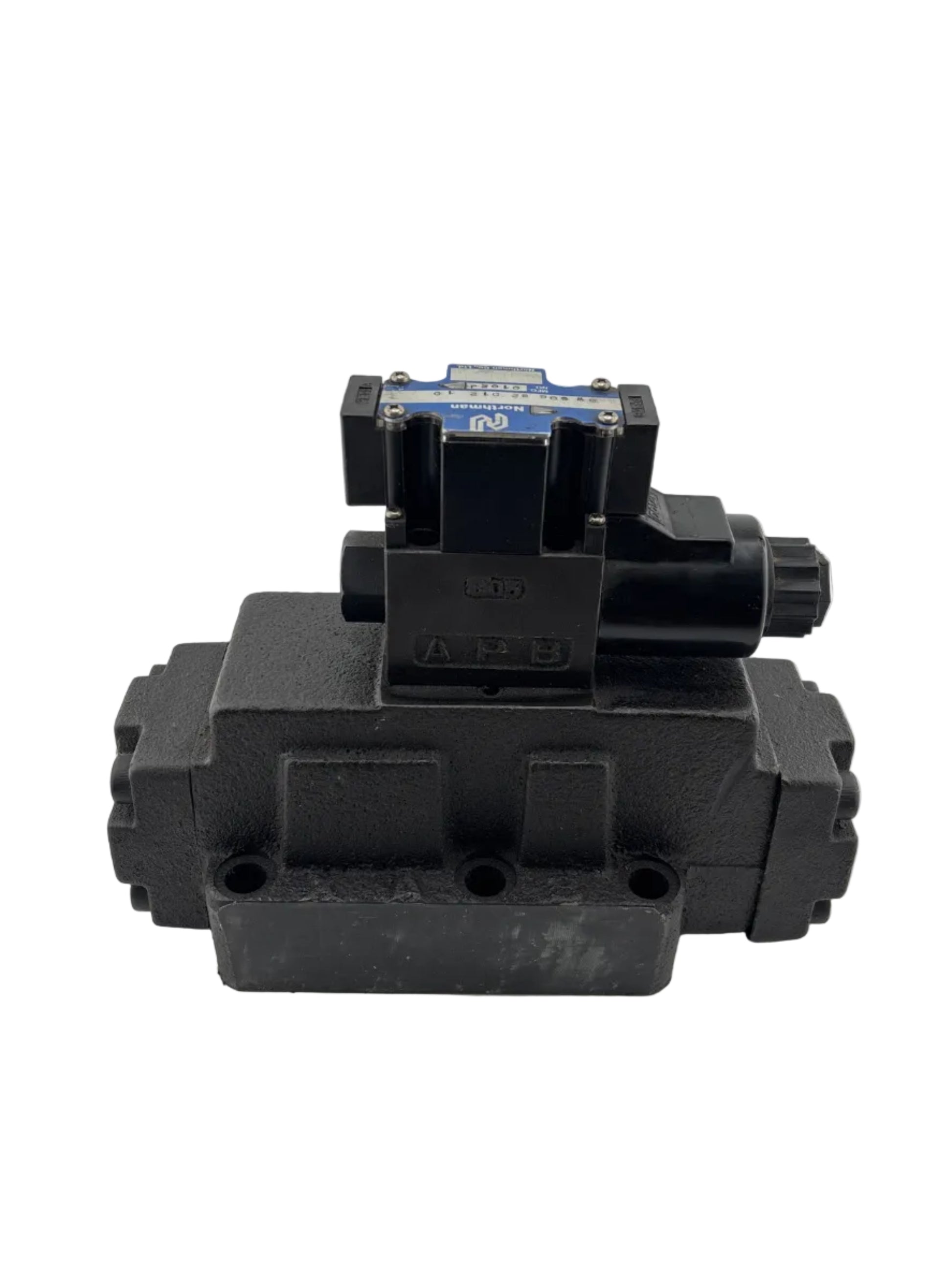

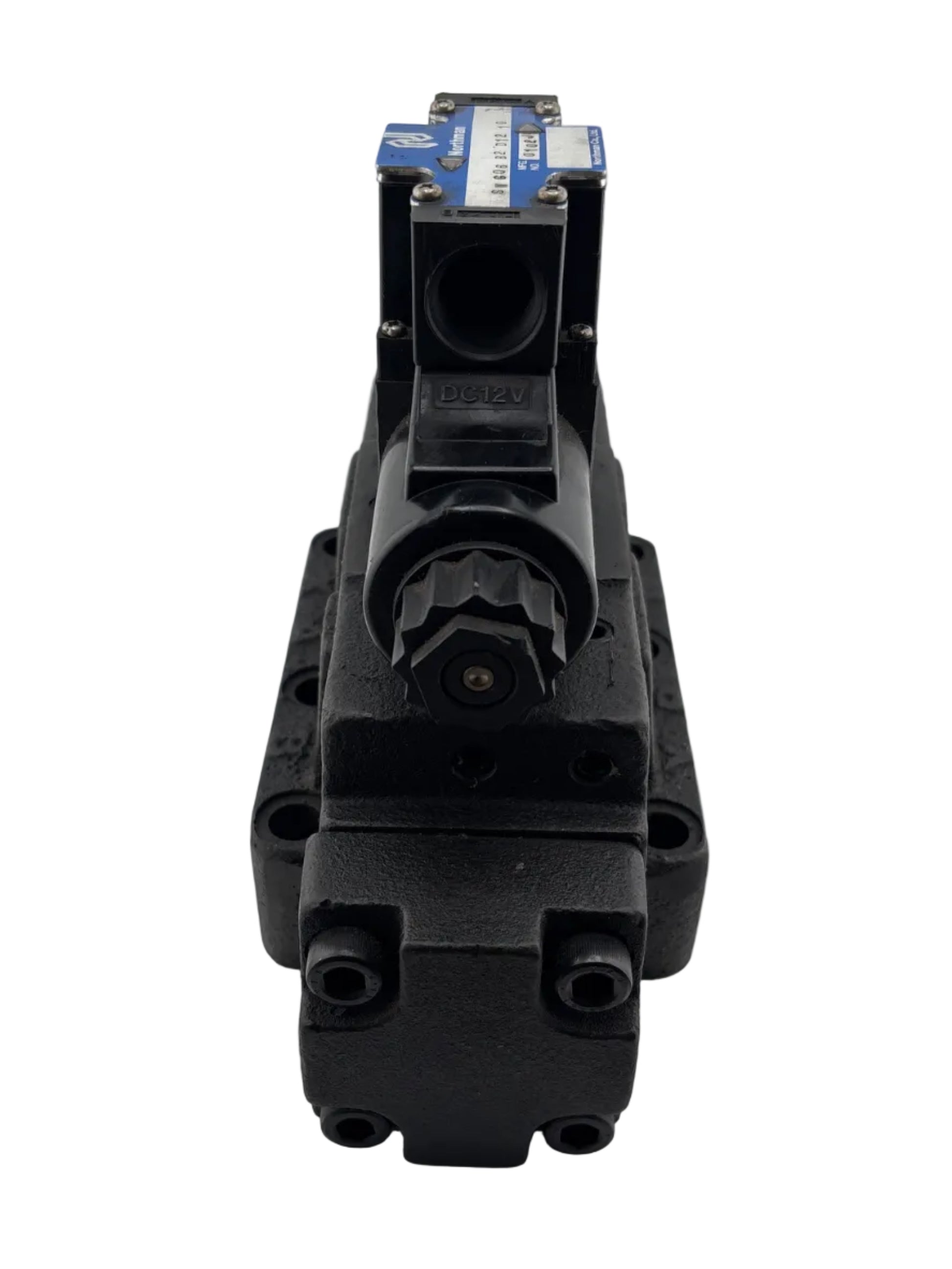

Northman SWH-G06 Series D08 Hydraulic Direction Valve

Valve type: Solenoid-controlled pilot-operated directional control valve Function: 4-way, 2-position directional valve Spool / offset: B2 = spring-offset spool Center condition: N/A — B2 is 2-position, not a 3-position center-condition spool Solenoids: Single solenoid Pilot / drain: ET = external pilot and external drain Mounting style: G = subplate mounted Nominal size / interface: G06 = 20 mm / 3/4 in, NFPA D08, ISO 4401-08 / CETOP 8 / NG25 Coil voltage: A120 = AC120V, 60 Hz / AC110V, 50 Hz Voltage range: 108–132 VAC at 60 Hz / 99–121 VAC at 50 Hz, ±10% Coil current: 1.20 A inrush / 0.27 A holding at 60 Hz; 1.30 A inrush / 0.38 A holding at 50 Hz Coil wattage: Not listed for A120 AC coils; Northman lists inrush/holding current instead Wiring style: 10 = joint box / junction box with indicating lights Seal suffix: No seal suffix shown on SWH-G06-B2-ET-A120-10; Buna-N would typically be N if specified Max operating pressure: 310 bar / 4500 psi Rated flow capacity: 500 LPM / 133 GPM max Max tank line back pressure: External drain configuration; drain should return through the Y port rather than internally to T Pilot pressure: 3.5–250 bar / 50–3550 psi
