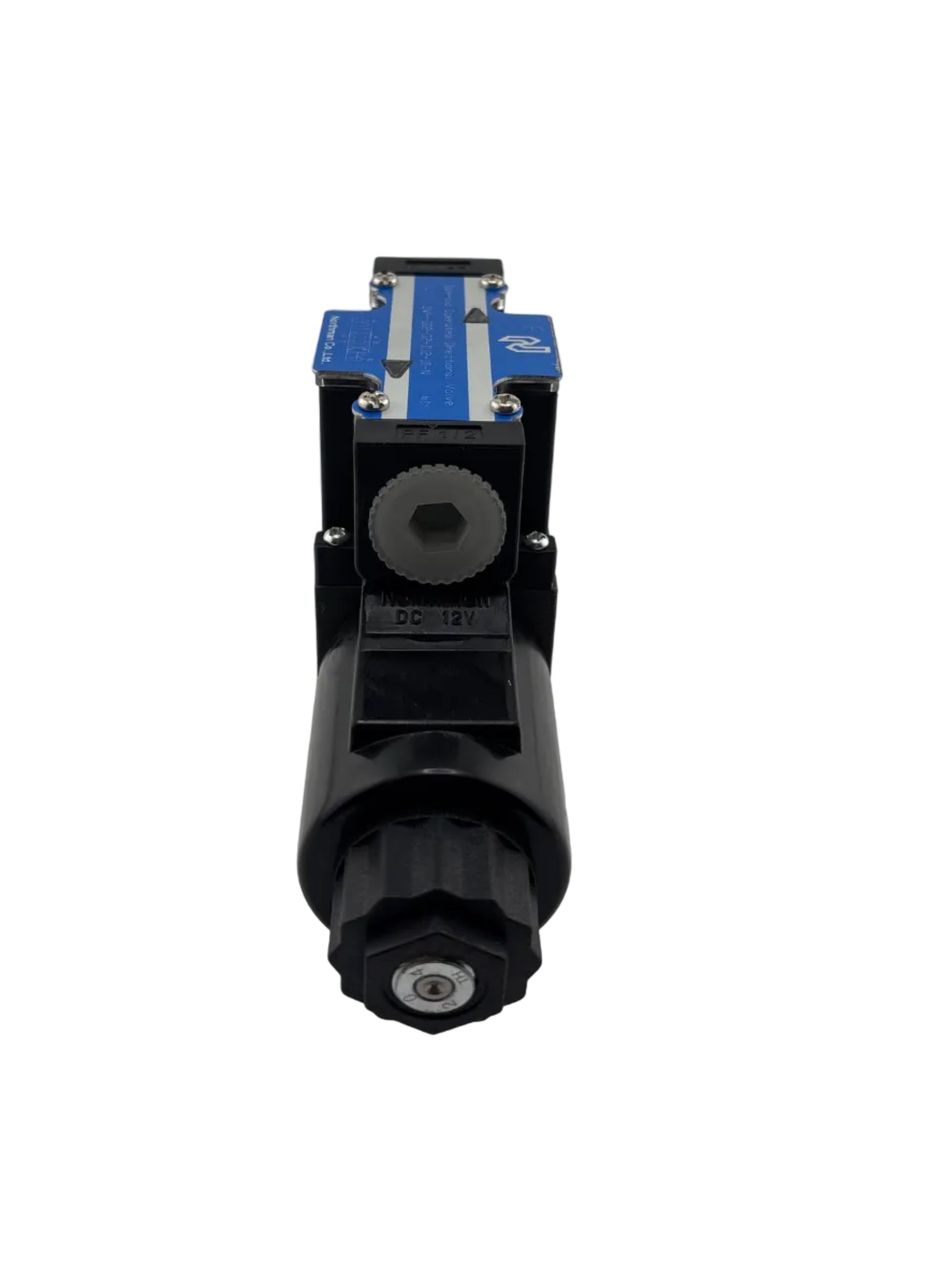

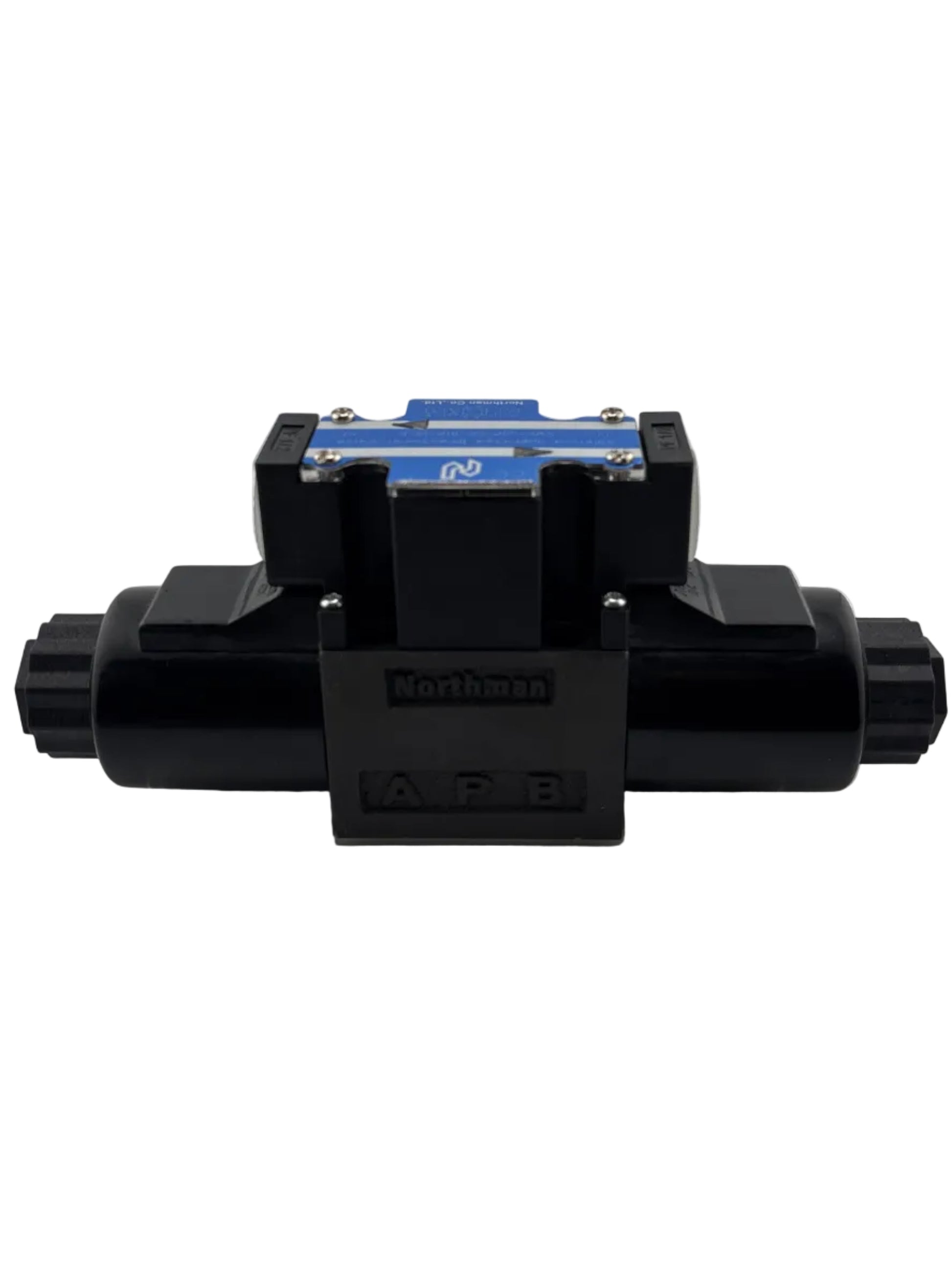

Northman SWH-G02 Series D03 Hydraulic Solenoid Valves

Northman SWH-G02 Series D03 Hydraulic Solenoid Valves

$303.64
$303.64
Sale Sold out
Shipping calculated at checkout.

SWH Series Specifications



• Armature operates in oil system. Impact is cushioned, noise is reduced and solenoid life is increased.
• Wet armature solenoid eliminates pushpin seal, therefore no seal wear or leakage for longer valve life.
• Molded coils for maximum insulating properties, which is impervious to moisture and dirt.
• Plug-in solenoid, for ease of maintenance.
• All spools and bodies are interchangeable, simplifying maintenance.
• Indicating signal lights and bolt kits are standard.
• High pressure, high flow rating, and low-pressure drop.
• Specially designed, balanced spool allows proper shifting force, for maximum reliability and long life.
• Viton seal kits are available for fire-resistance fluids.

View full details

Model Specifications

Valve type: Solenoid-operated directional control valve, direct operated Function: 4-way, 3-position directional valve Center condition: C2 = closed center / all ports blocked Solenoids: Dual solenoid Mounting style: G = subplate mounted Nominal size / interface: 02 = 6 mm, NFPA D03, ISO 4401-03 / CETOP 3 / NG6 Coil voltage: D12 = 12 VDC Voltage range: 10.8–13.2 VDC, ±10% Coil current: 2.20 A inrush / 2.20 A holding for D12, -10/-20 style Coil wattage: Approx. 26 W Wiring style: 10 = joint box / wiring box with indicating lights Seal suffix: N = Buna / Buna-N seals Max operating pressure: 310 bar / 4500 psi Rated flow capacity: 63 LPM / 16.8 GPM max, varies by spool type Max tank line back pressure 138 bar / 2000 psi
