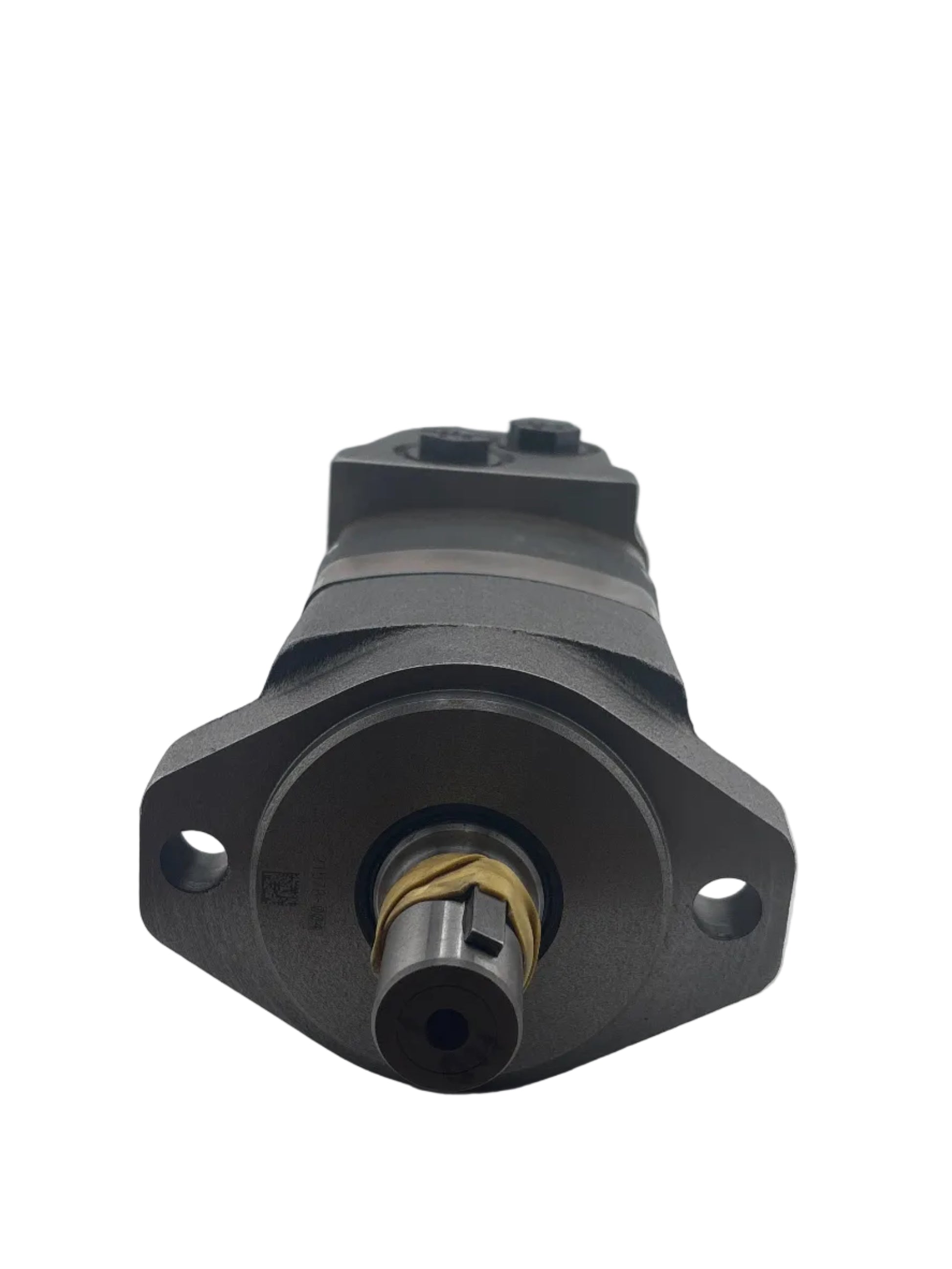

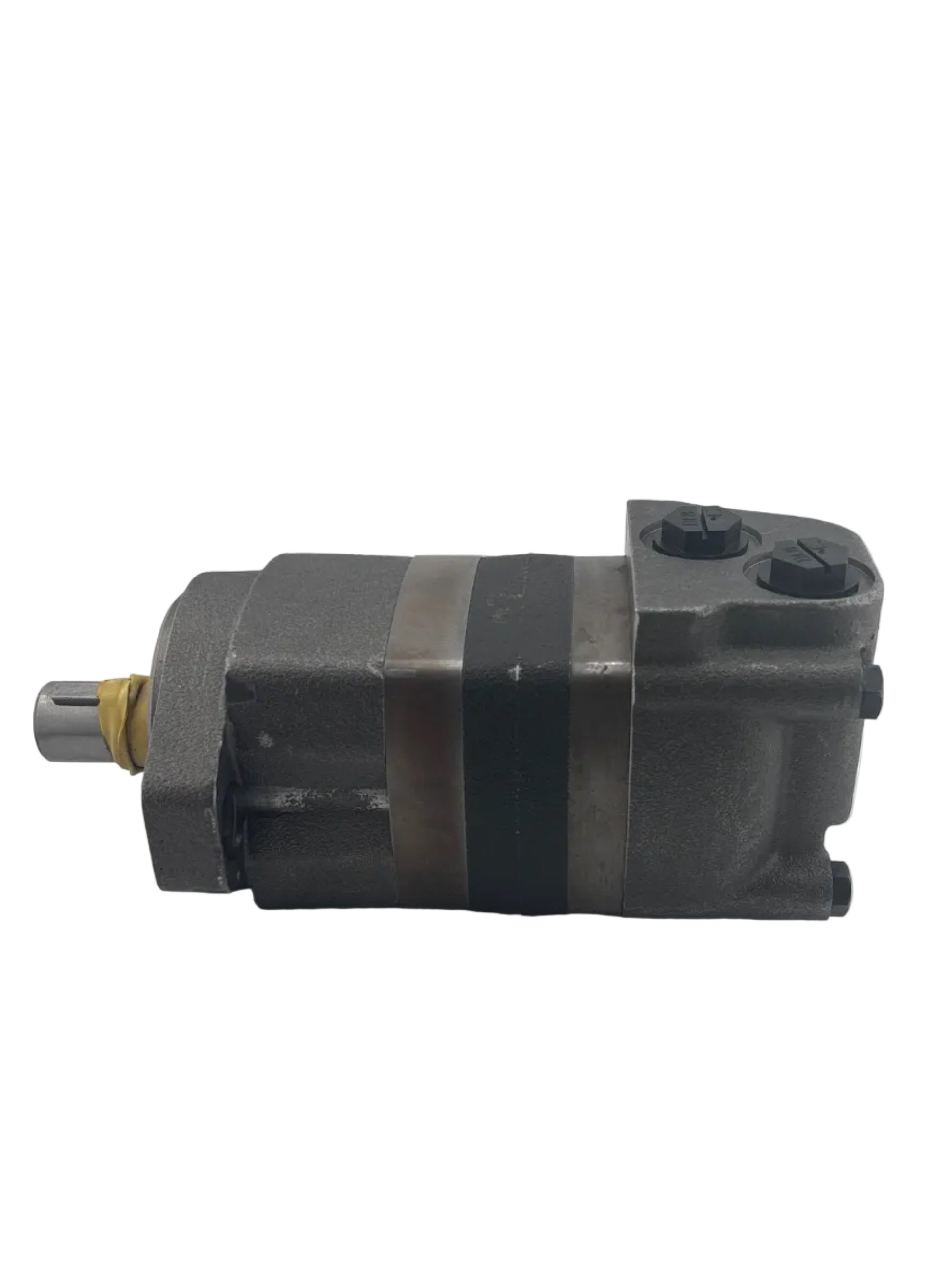

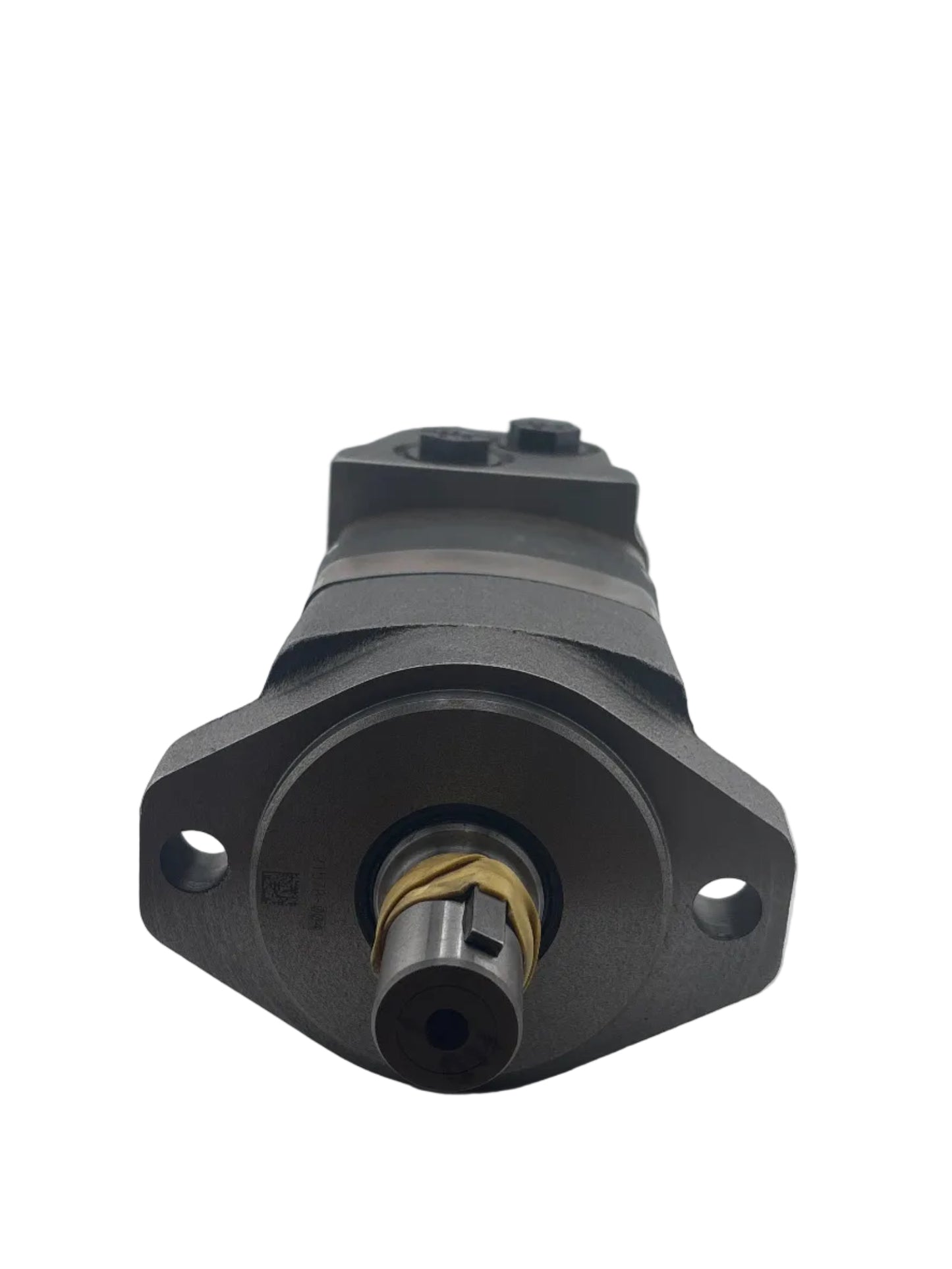

Model Specifications
Model: 104-1001-006
Displacement: 80 cm3/r [4.9 in3/r]
Char-Lynn Reference: 104-1001-006
Mount: 2-Bolt Flange (SAE A)
Shaft: 1 inch Straight Keyed
Ports: 7/8-14 O-Ring Ports (Staggered Side Ports)
Performance Specs:
Max Torque: 235 Nm [2065 lb-in] Continuous / 345 Nm [3035 lb-in] Intermittent
Max Pressure: 205 bar [3000 PSI] Continuous / 310 bar [4500 PSI] Intermittent
Max Flow: 75 lpm [20 GPM] Continuous / 75 lpm [20 GPM] Intermittent
Max Speed: 908 RPM
Weight: 9.3 kg [20.5 lbs]
