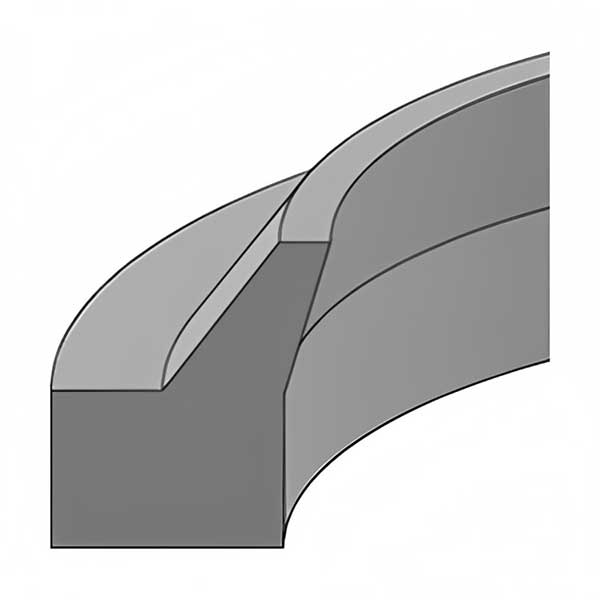

Hercules AN Series Hydraulic Cylinder Wiper Ring

Hercules AN Series Hydraulic Cylinder Wiper Ring

$0.01
$0.01
Sale Sold out
Shipping calculated at checkout.

AN-01 is a AN Wiper Ring with an ID 0.500 X OD 0.750 X Height 0.109 measurement is for Rod Size .500 inch

Product AN-01
Weight 0.0012 lbs
Nom ID 1/2
Nom OD 3/4
Nom Height 7/64
D Groove Width .107
Rod .500
Thickness .104
G Housing Diameter .760
F Throat Diameter .647
Material 90A Urethane
Nom Cross Section .187
Brand Hercules
Temperature Range -40 TO +200F
Speed 3 FT/SEC
View full details

Selected variant

Technical specifications

SKU AN

Detailed variant specifications are not yet available for this selection. Review the product description or contact Yarbrough with the SKU for help.
