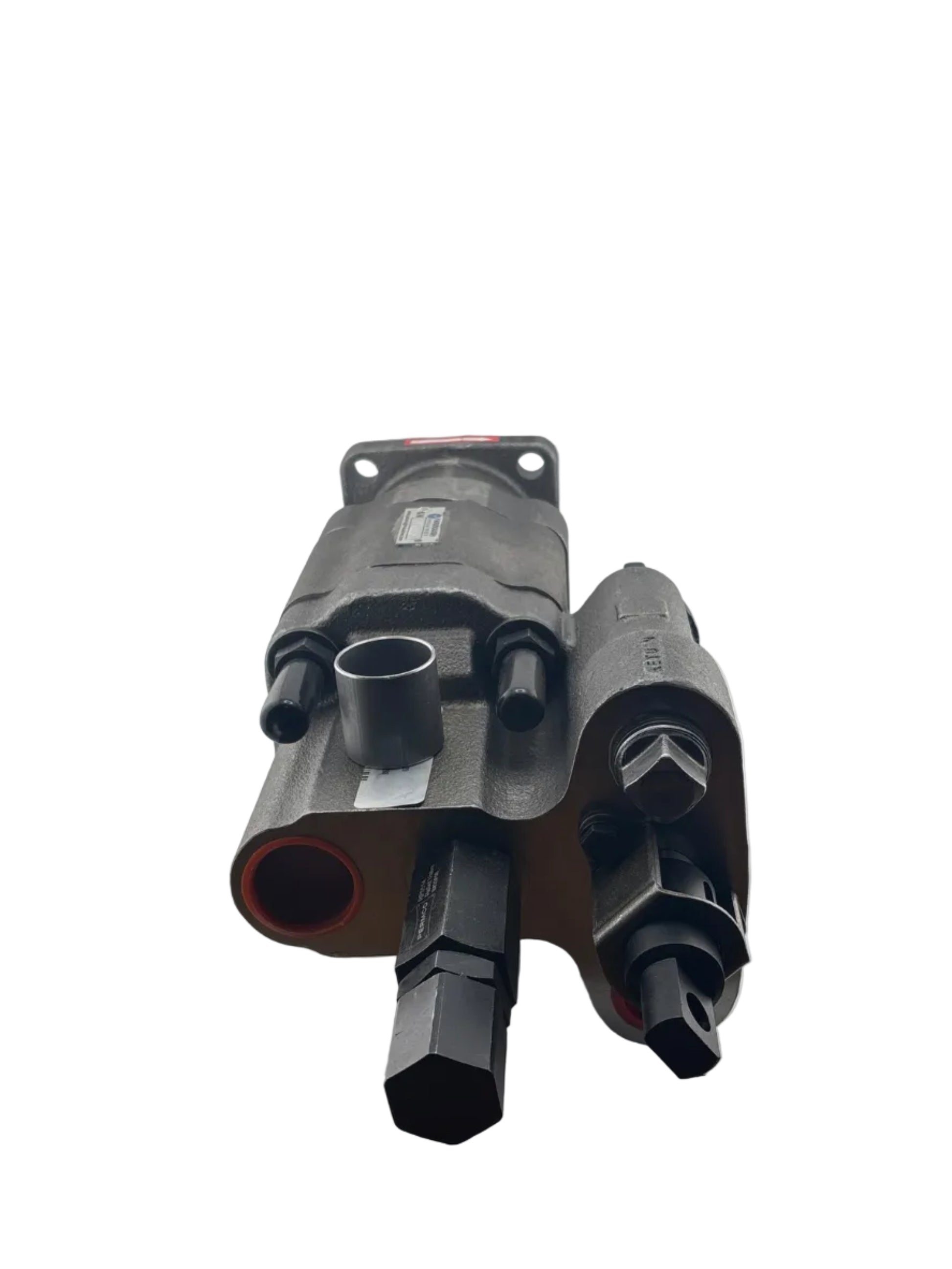

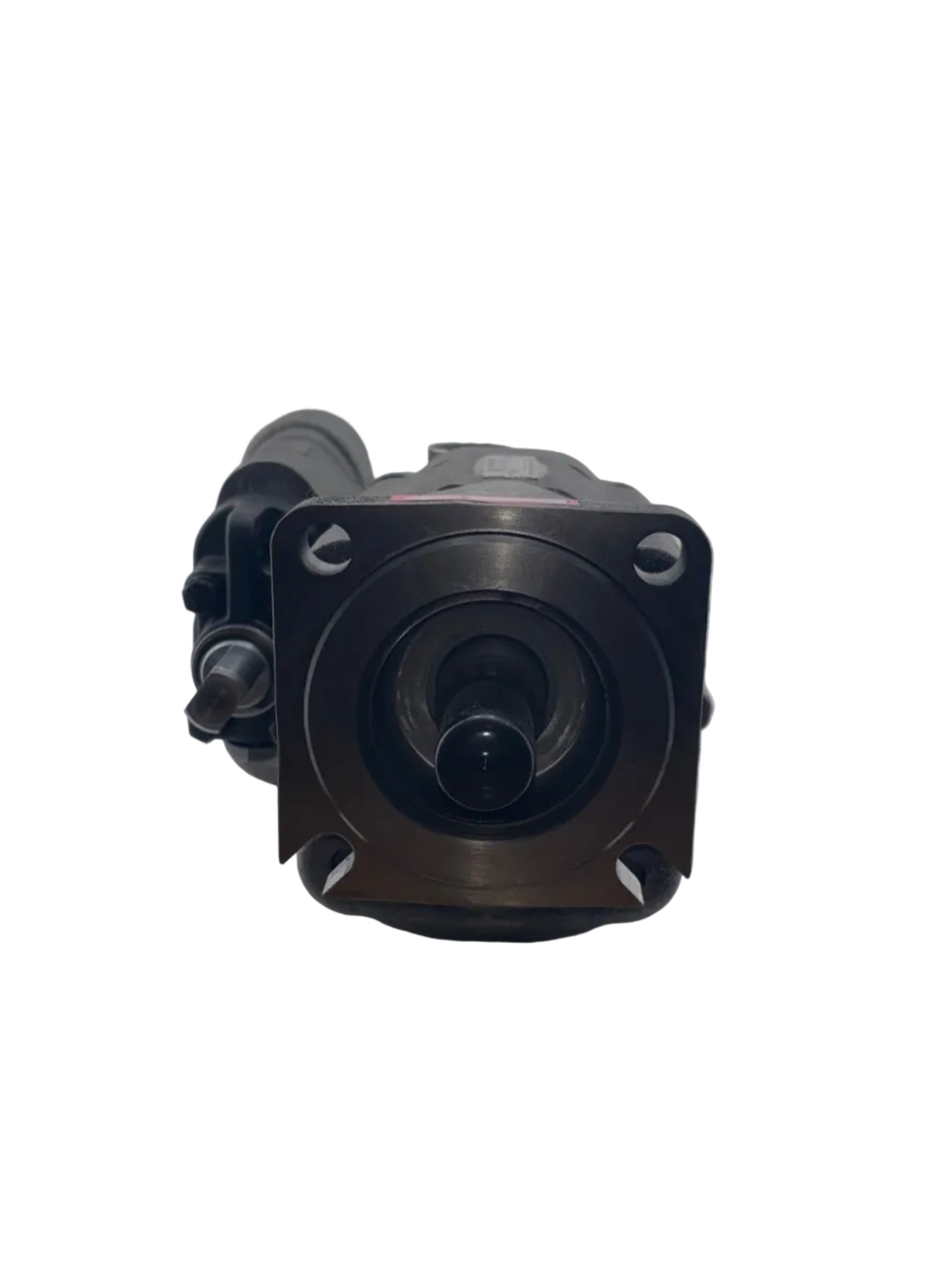

Permco DMD-25/DM-640-25 Series Hydraulic Pump

Permco DMD-25/DM-640-25 Series Hydraulic Pump

$953.12
$953.12
Sale Sold out
Shipping calculated at checkout.

 The DMD-25 and DM-640-25 series are heavy-duty, commercial-grade hydraulic dump pumps. They are widely considered the "industry standard" for operating the hydraulic cylinders on dump trucks, dump trailers, and live-floor trailers.

View full details

Selected variant

Technical specifications

SKU DMD-25-Z-L-MS-20
Direct Mount (DMD) Three Sleeve(Z) Left Hand Rotation(L) Manual Shift (MS)

GPM 27-33

RPM 2400

PSI 2500

SAE 4 Bolt (B)

SAE "B" 7/8" 13 Tooth Spline

Inlet Port 1 1/4" NPT

outlet port 1" NPT

Return port 1"

Gear Width 2.5" 50 GPM at 1800 RPM
