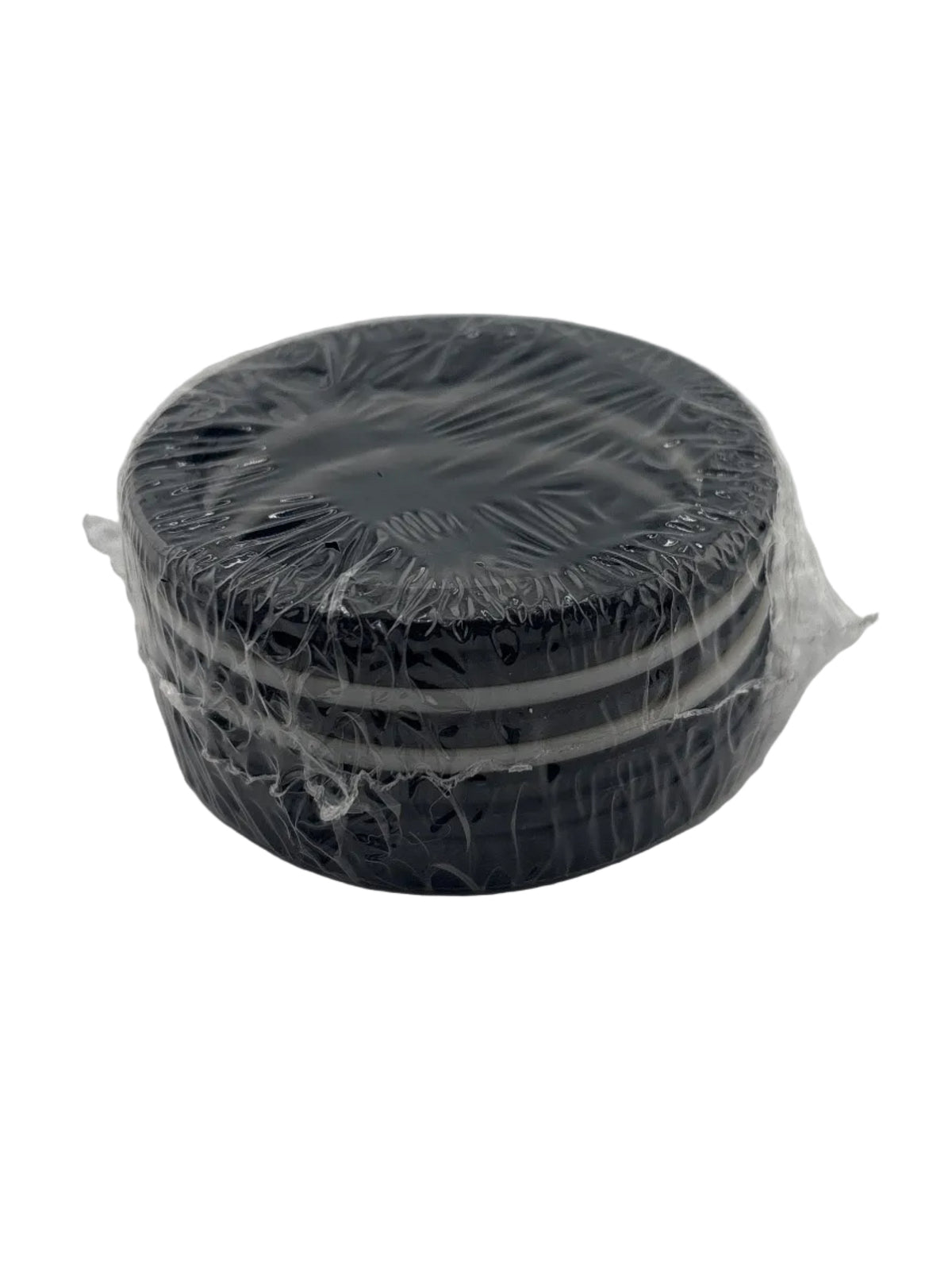

Fabric Reinforced Rubber Hydraulic Vee Packing Set

Fabric Reinforced Rubber Hydraulic Vee Packing Set

Engineered for demanding hydraulic and pneumatic sealing applications, this Fabric Reinforced Rubber Hydraulic Vee Packing Set delivers reliable, long-service sealing performance in cylinders, rams, and rod/piston assemblies. The multi-ring vee pack configuration — typically including a male adapter, female adapter, and one or more vee rings — allows field-adjustable compression to compensate for wear and maintain a positive seal over the life of the equipment.

Key Features

• Fabric-reinforced construction: Rubber compound bonded with high-strength fabric plies for superior pressure resistance, dimensional stability, and extrusion resistance under dynamic loading
• Vee-ring profile: Classic V-cross-section provides progressive sealing force — the higher the system pressure, the tighter the seal
• Complete set: Includes male adapter (bottom ring), vee rings, and female adapter (top ring) for a ready-to-install assembly
• Wide material compatibility: Suitable for use with petroleum-based hydraulic fluids, water-based fluids, and many synthetic fluids (verify compound compatibility for specific media)
• Temperature range: Rated for standard industrial operating temperatures; consult compound data sheet for extremes
• Adjustable gland: Designed for use with a follower/gland that allows re-tightening to extend service life

Typical Applications

• Hydraulic cylinders and rams
• Presses and jacks
• Pumps and valve stems
• Industrial and mobile hydraulic equipment

Available in multiple sizes to fit standard rod and bore diameters. Specify rod/bore diameter and groove dimensions when ordering to ensure correct fit.
