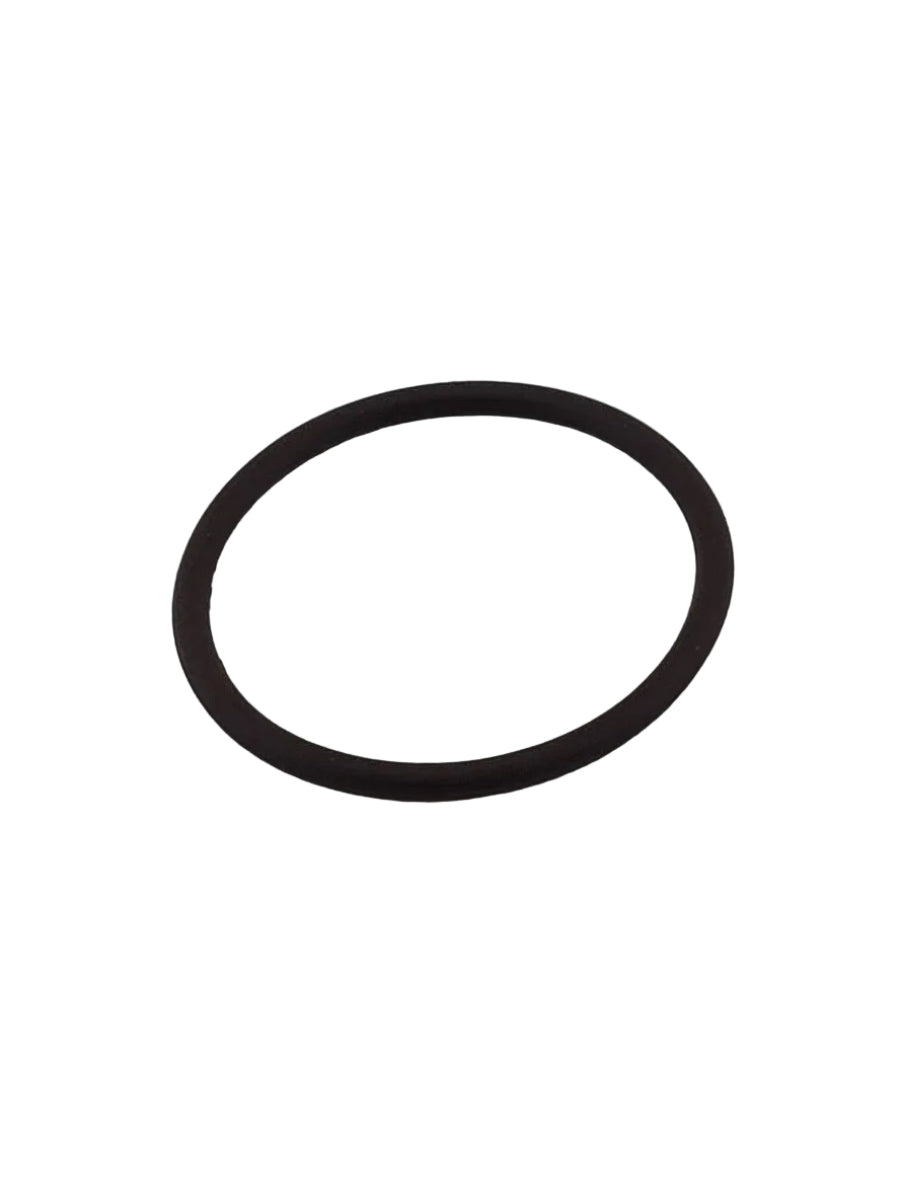

Built for the most chemically aggressive and high-temperature hydraulic environments, this Fluorocarbon (FKM/Viton®) O-ring delivers superior sealing integrity where standard elastomers fall short. At 75A Shore durometer, it provides firm, stable compression resistance — ideal for high-pressure dynamic and static sealing applications across industrial, aerospace, and mobile hydraulic systems.
Key Features
Material: Fluorocarbon (FKM / Viton®)
Durometer: 75A Shore — firm hardness for high-pressure sealing stability
Temperature Range: -20°F to +400°F (-29°C to +204°C); short-term excursions to +446°F (+230°C)
Excellent resistance to petroleum-based oils, fuels, hydraulic fluids, and aromatic hydrocarbons
Compatible with: mineral-based hydraulic fluids, diesel, gasoline, silicone oils, halogenated solvents, and most acids
Not recommended for: ketones (MEK, acetone), hot water/steam above 400°F, or phosphate ester fluids (Skydrol®)
Applications
High-pressure hydraulic cylinders and pumps
Mobile and industrial hydraulic systems
Fuel systems and injection equipment
Aerospace and defense fluid handling
Chemical processing equipment
Available in AS568 standard dash sizes. Verify groove dimensions for correct gland design and compression ratio prior to installation.
