Model Specifications
Part number 101-1001-009
Catalog base number in PDF 101-1001

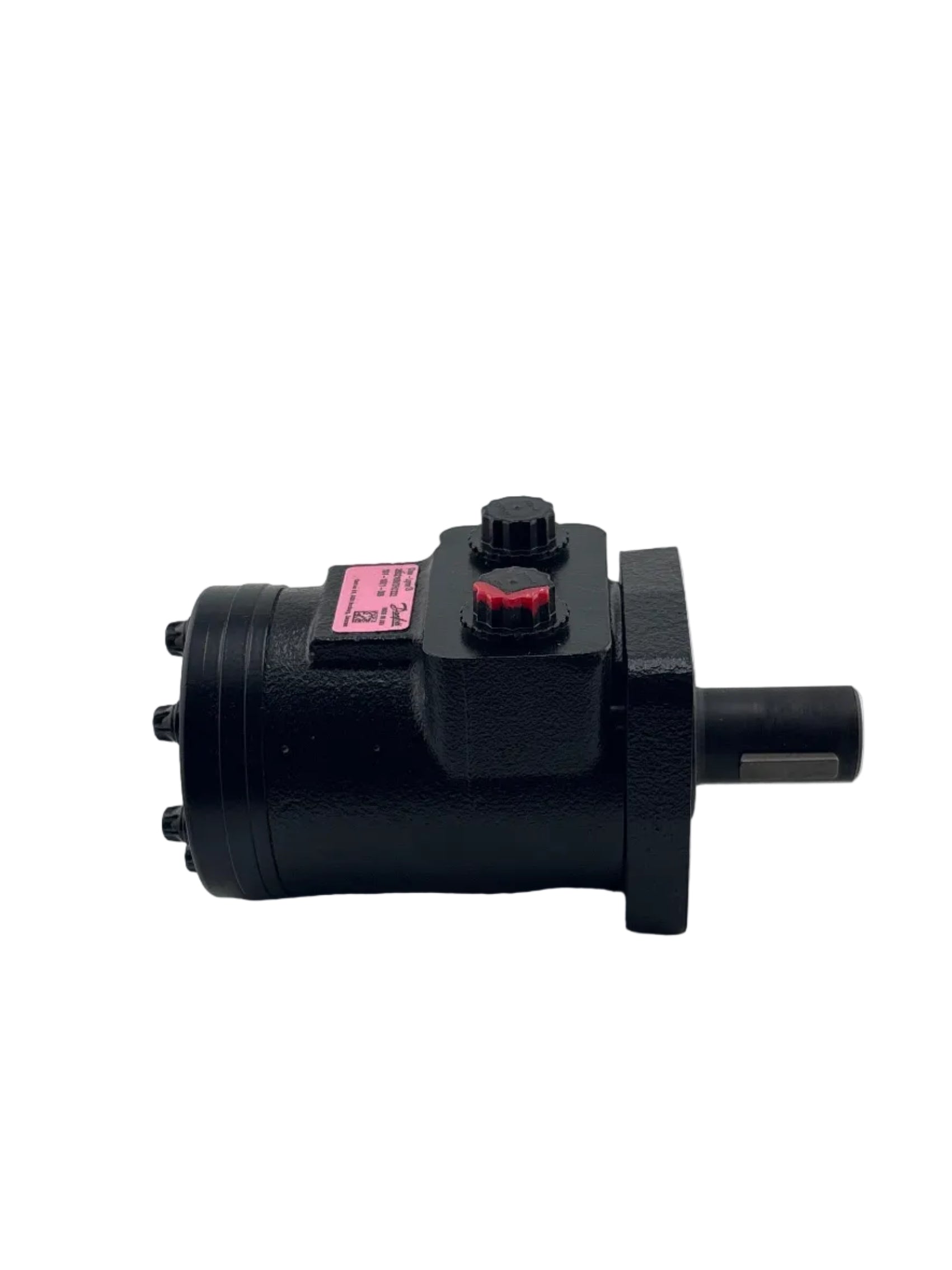

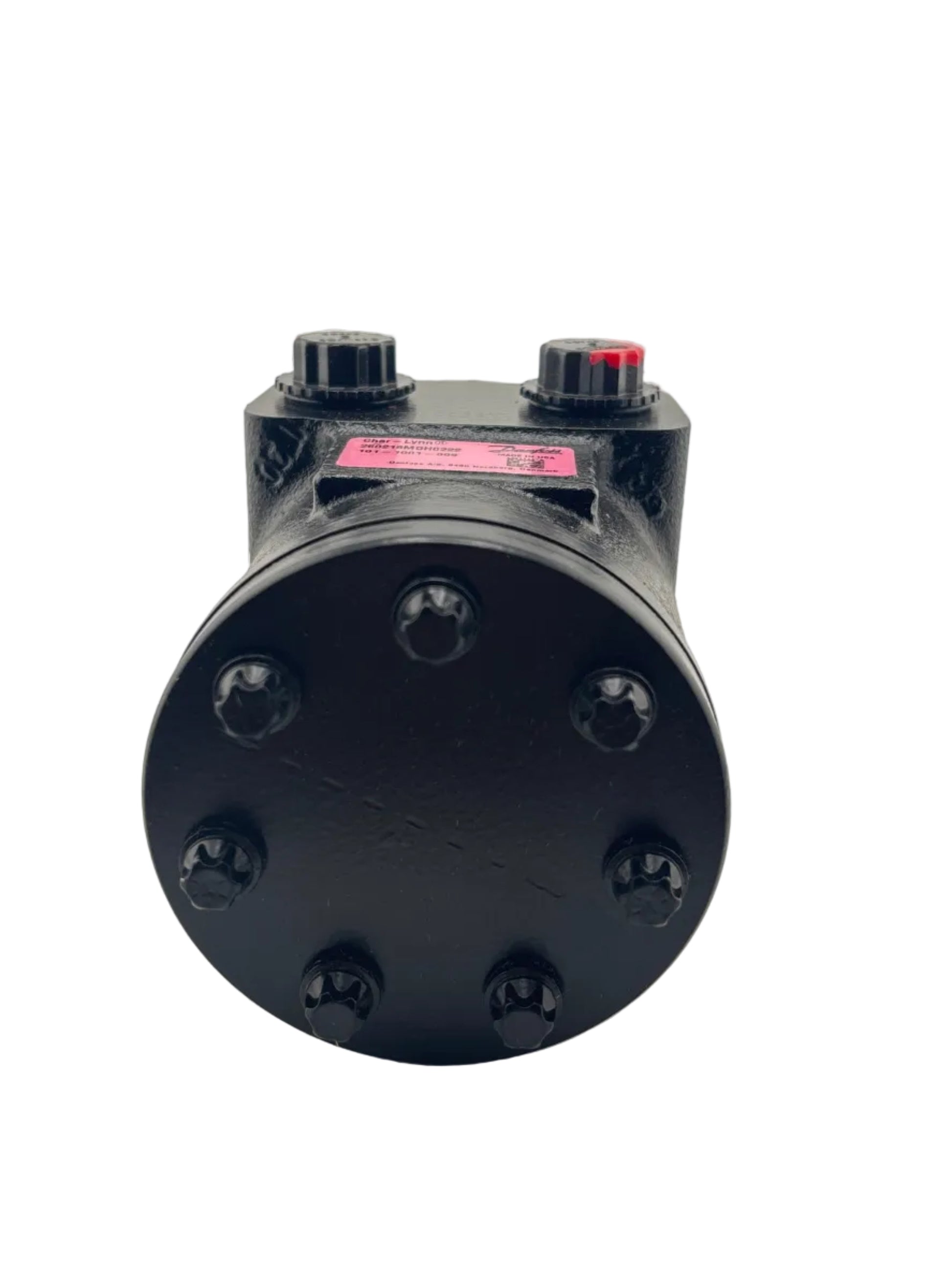

Model / series Danfoss / Char-Lynn H Series (101-) spool valve Gerotor motor
Displacement 46 cm³/rev [2.8 in³/rev]
Mount 4-bolt standard flange
Mount details 44.40 mm [1.748 in] dia. x 3.05 mm [.120 in] pilot, 3/8-16 UNC-2B mounting holes on 82.55 mm [3.250 in] bolt circle

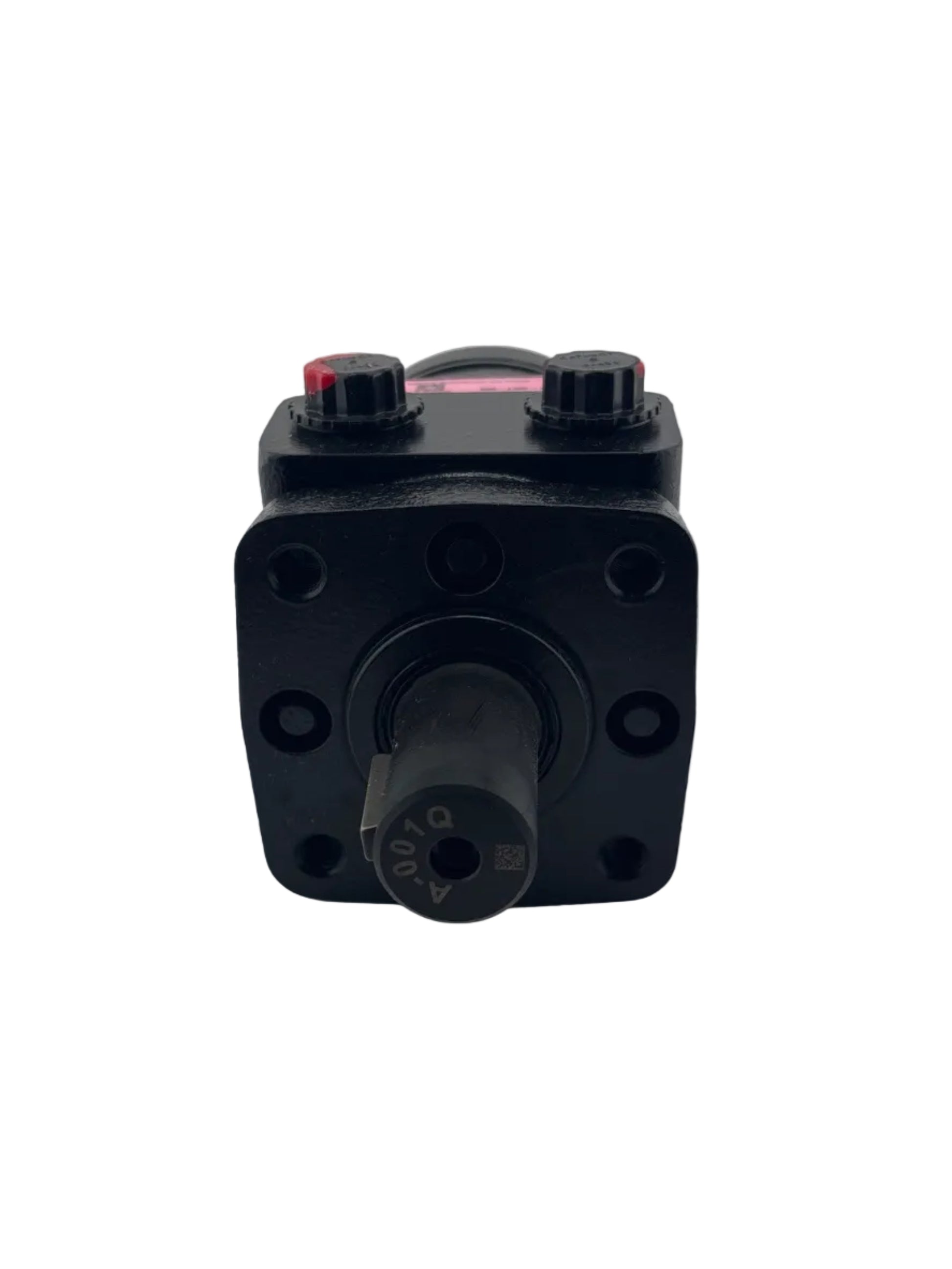

Shaft 1 in straight shaft with Woodruff key
Shaft details 25.4 mm [1.00 in] dia. straight shaft, Woodruff key, 1/4-20 UNC-2B hole in shaft end
Ports 1/2-14 NPTF dryseal pipe thread ports
Max torque, continuous 84 Nm [745 lb-in]
Max torque, intermittent 106 Nm [937 lb-in]
Max pressure, continuous 141 bar [2050 psi] delta pressure
Max pressure, intermittent 177 bar [2565 psi] delta pressure
Max inlet pressure 177 bar [2565 psi]
Max flow, continuous 45 L/min [12 gpm]
Max flow, intermittent 53 L/min [14 gpm]
Max speed 969 rpm at continuous flow
Weight 5.1 kg [11.2 lb]
