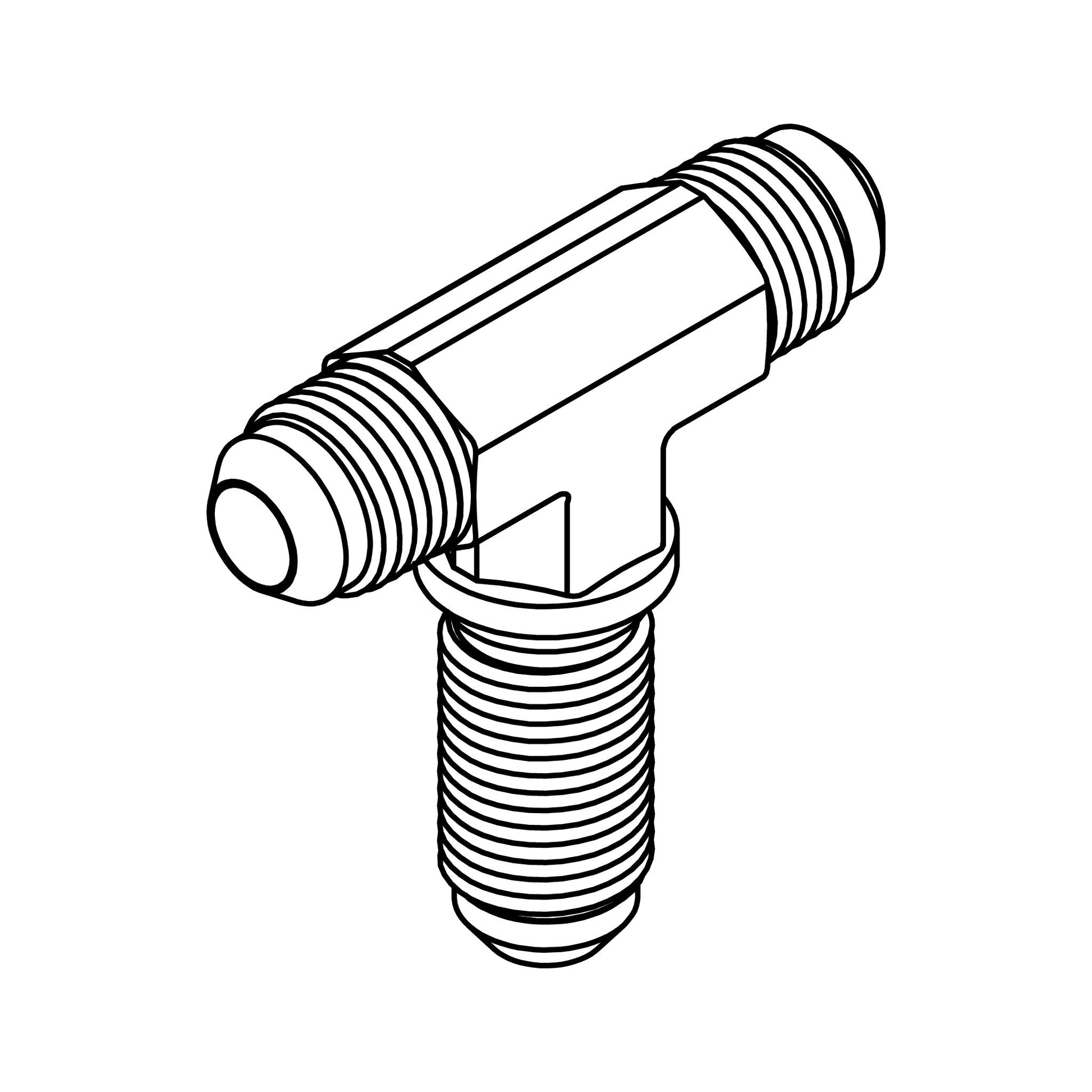

Tompkins 2703 Series JIC 37° Flare Bulkhead Union Branch Tee Hydraulic Adapter

Tompkins 2703 Series JIC 37° Flare Bulkhead Union Branch Tee Hydraulic Adapter

$0.01
$0.01
Sale Sold out
Shipping calculated at checkout.
Thread 1 Type: Male JIC
Thread 2 Type: Male JIC
Thread 3 Type: Male JIC

Search by another manufacturer's part number: The following steel 37° JIC bulkhead branch tee sizes correspond by connection style and nominal tube size. Select the Tompkins size shown in the right column.

Other manufacturer's number Tompkins variant Nominal tube size
Parker 4 WJTX-S 2703-4-4-4 1/4 in
Danfoss/Aeroquip 203002-6-6S; Parker 6 WJTX-S 2703-6-6-6 3/8 in
Parker 8 WJTX-S 2703-8-8-8 1/2 in
Parker 10 WJTX-S 2703-10-10-10 5/8 in
Parker 12 WJTX-S 2703-12-12-12 3/4 in
Parker 16 WJTX-S 2703-16-16-16 1 in
Parker 20 WJTX-S 2703-20-20-20 1 1/4 in

Confirm thread, material, pressure rating, dimensions, and locknut requirements for the application before substituting. The 2703-LN style includes a locknut and is listed separately.

View full details

Selected variant

Technical specifications

SKU 2703-3-3-3

Detailed variant specifications are not yet available for this selection. Review the product description or contact Yarbrough with the SKU for help.
