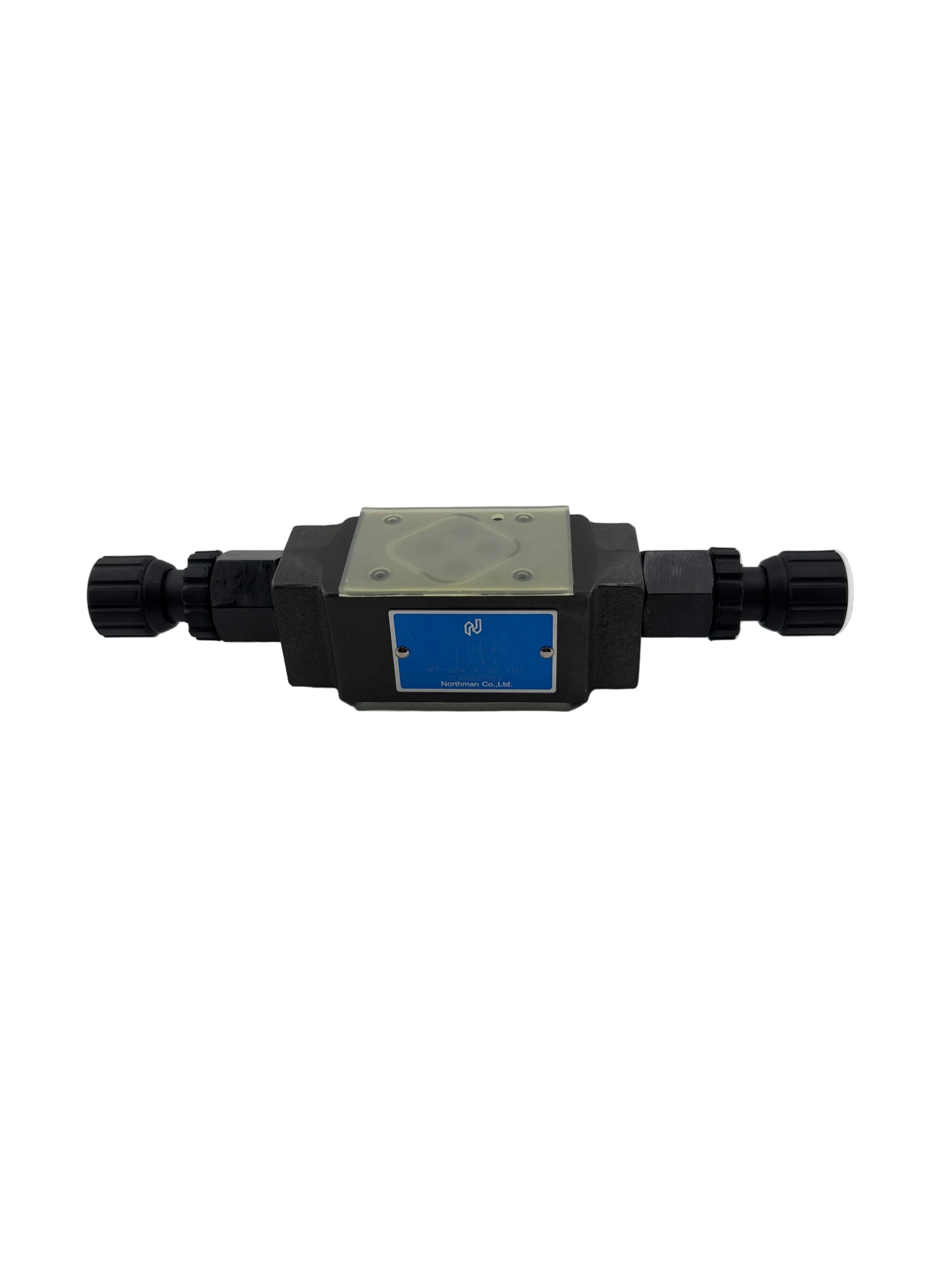

Northman Modular Throttle and Hydraulic Check Valve MT-02 Series

Valve type: Non-compensated modular throttle / flow control valve with check
Function: Restricts flow in one direction, free flow in opposite direction
Nominal size: 02 = 6 mm, D03 / NG6 size
Controlled ports: W = A & B ports
Adjustment: K = with plastic knob / knob adjustment
Max operating pressure: 250 bar / 3675 psi
Max flow: 35 LPM / 9.3 GPM
Flow adjustment range: 0.3–35 LPM for size 02
Mounting interface: ISO 4401-AB-03 / NFPA D03 style mounting
