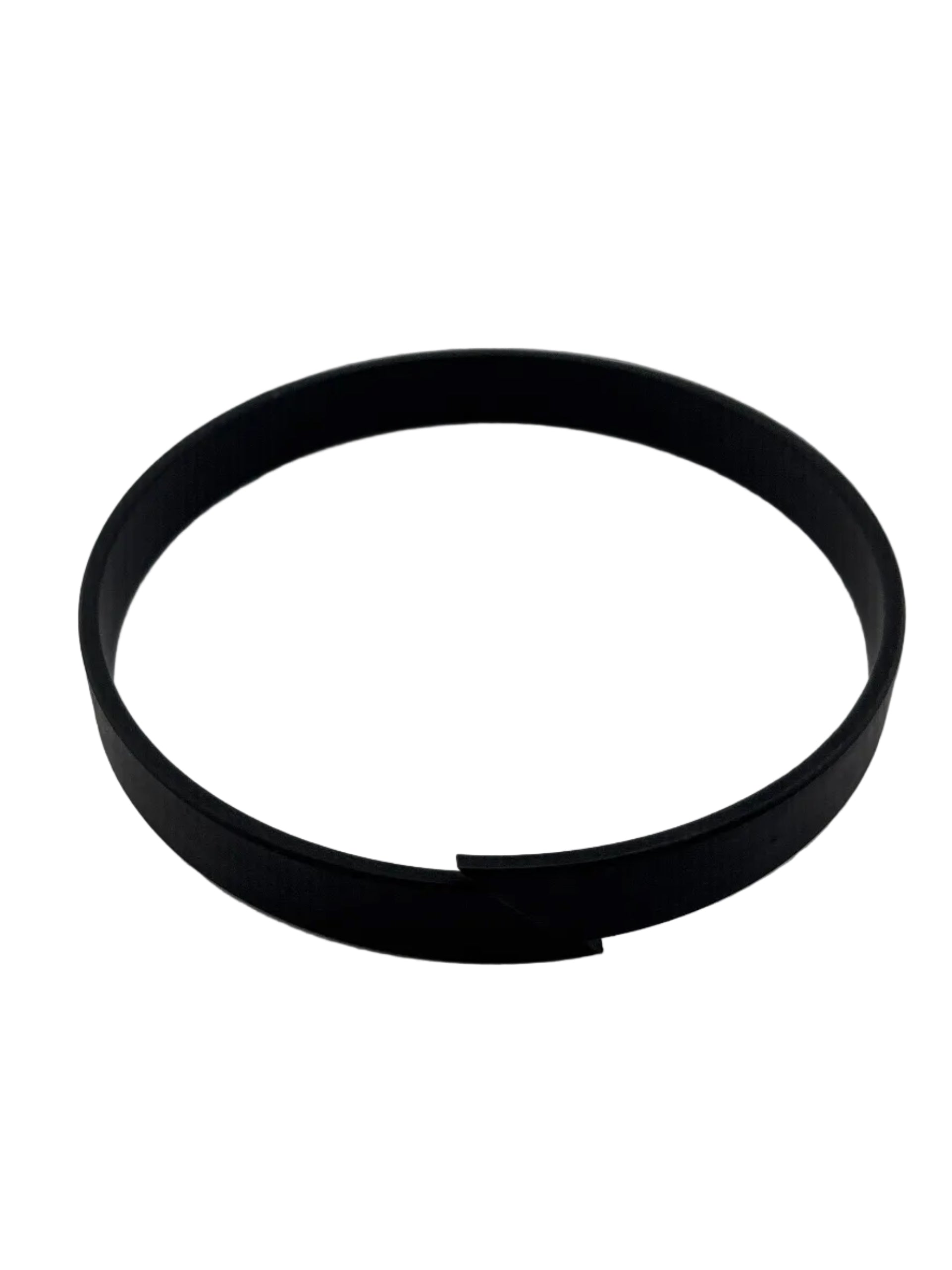

Engineered for precision fit and long service life in hydraulic and pneumatic cylinder applications, our Nylon Wear Ring provides reliable radial guidance and load support for pistons and rods. Manufactured from high-performance nylon, this wear ring resists side loading, reduces metal-to-metal contact, and extends the service life of seals and cylinder bores.
Key Features
Material: High-strength nylon (PA66 or equivalent) — low friction, self-lubricating
Function: Radial guidance and lateral load absorption for pistons and rods
Prevents metal-to-metal contact between piston/rod and cylinder bore
Excellent wear resistance under continuous dynamic loading
Compatible with hydraulic oils, mineral oils, and water-based fluids
Easy to machine or cut to length from strip stock (if applicable)
Operating temperature range: -40°F to +230°F (-40°C to +110°C)
Typical Applications
Hydraulic cylinders (mobile and industrial)
Pneumatic actuators
Heavy equipment and construction machinery
Agricultural and forestry equipment
Material handling systems
Available in standard AS568 and SAE dash sizes. Custom dimensions available upon request. Sold individually or in bulk quantities.
