Technical specifications

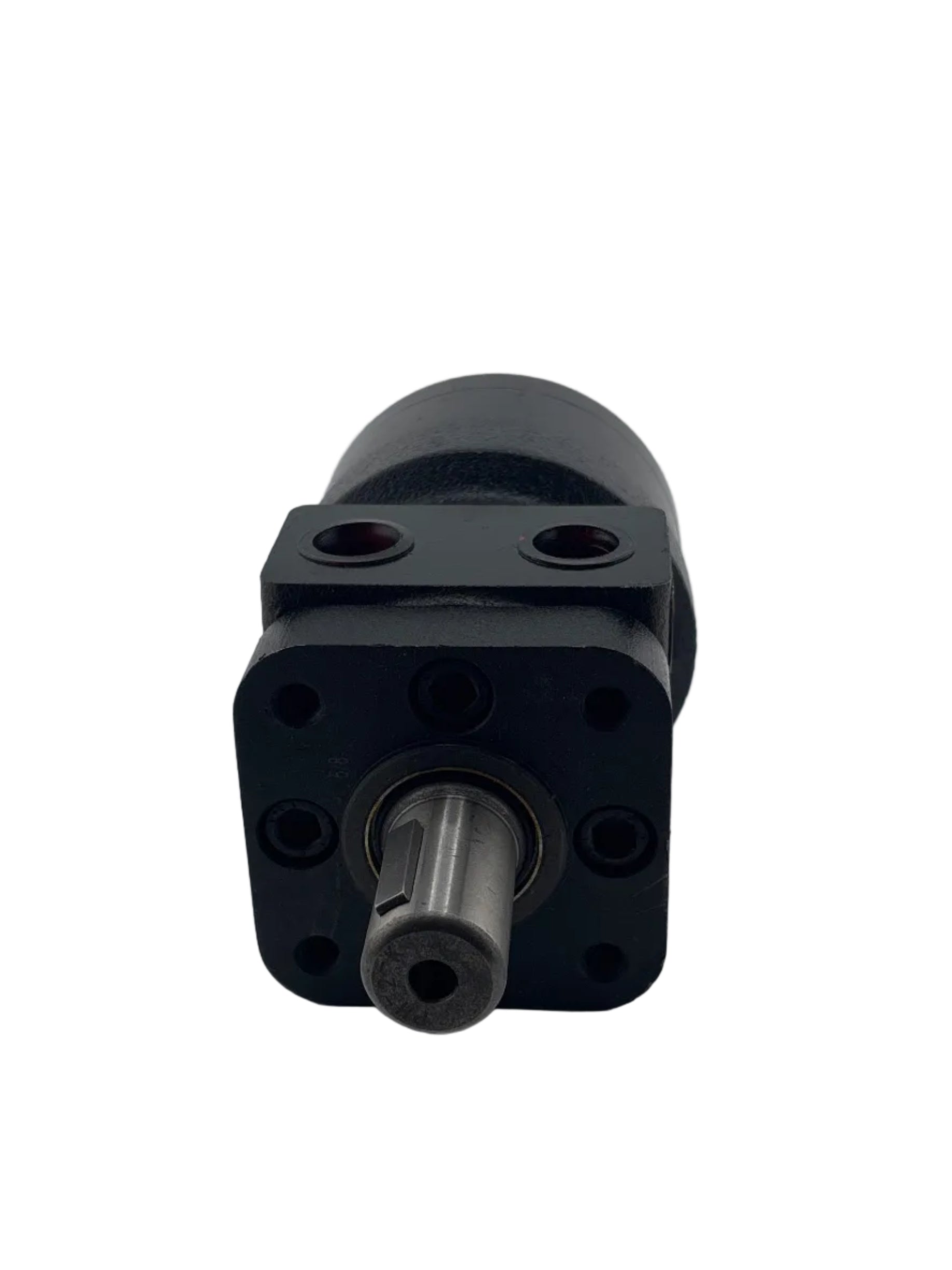

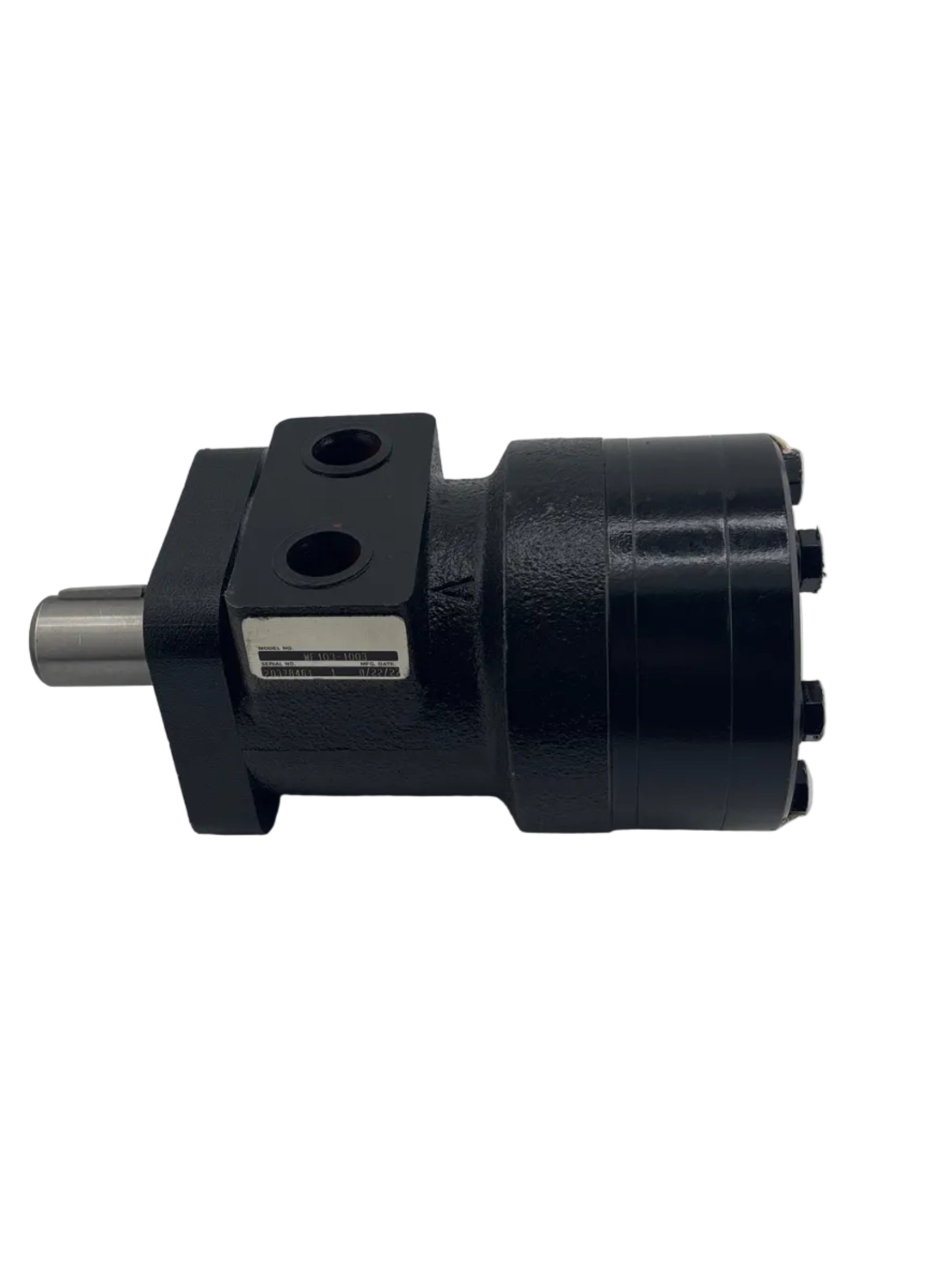

Model: WF103-1002
Displacement: 80cm rev (4.9)
Char-Lynn Reference 74cm (4.5)
Mount: 4 Bolt Flange Mount
Shaft: 1" Straight Woodruff key
Ports: 1/2 NFT O-Ring
Performance Specs:
Max Trouqe: 1,680lb Continuous 1,946lb Intermitted
Max Pressure: 2,539psi Continuous 2,901psi Intermitted
Max Flow: 16gpm Continuous 20gpm Intermitted
Max Speed: 750rpm Rated 970rpm Continuous
Weight: 16lbs
Displacement: 80cm rev (4.9)
Char-Lynn Reference 74cm (4.5)
Mount: 4 Bolt Flange Mount
Shaft: 1" Straight Woodruff key
Ports: 1/2 NFT O-Ring
Performance Specs:
Max Trouqe: 1,680lb Continuous 1,946lb Intermitted
Max Pressure: 2,539psi Continuous 2,901psi Intermitted
Max Flow: 16gpm Continuous 20gpm Intermitted
Max Speed: 750rpm Rated 970rpm Continuous
Weight: 16lbs
